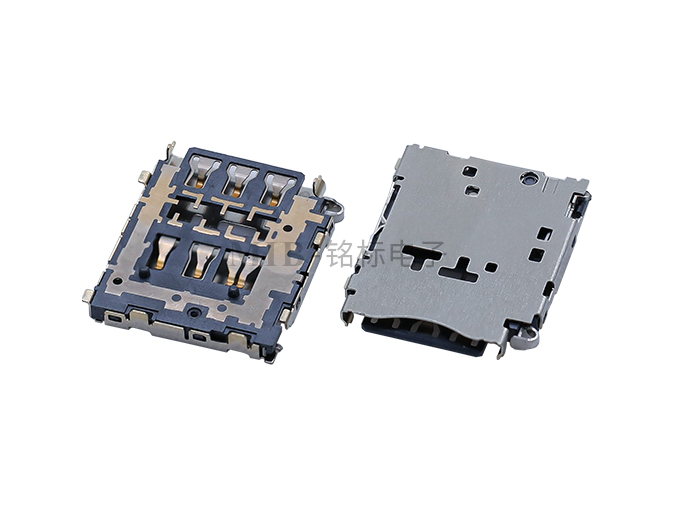

SPECIFICATIONS:
NOTE
1.Material:
1-1 Housing:High Temperature Thermoplastic,(LCP S475)Color Black UL 94V-0
1-2 Contact:Phosphor Bronze(C5210R-H,T=0.08+0.01mm)
1-3 Cover:SUS304-H T=0.15+0.03mm
2.Plating:
2-1 Contact terminal:
Contact area:Gold 3u"Min.
Solder area:Gold 0.8u"Min
Underplating:Ni overall 50U"Min.
2-2 Cover:
Underplating:Ni overall 30U"Min.
Solder area:Gold 0.8u"Min.
3.Specification:
3-1.Current Rating 0.5A max.
3-2.Contact Resistance:50 mOhms max
3-3.Insulation Resistance:1000 MOhms min./500VDC
3-4.Dielectric Withstanding Voltage:500 V AC/1minute
3-5.Operating Temperature:-25'C to+85'C
3-6.Mating Cycles:5000 Insertions
4.Product Compliant to RoHs Directive 2002/95/EC and ELV 2000/53/EC

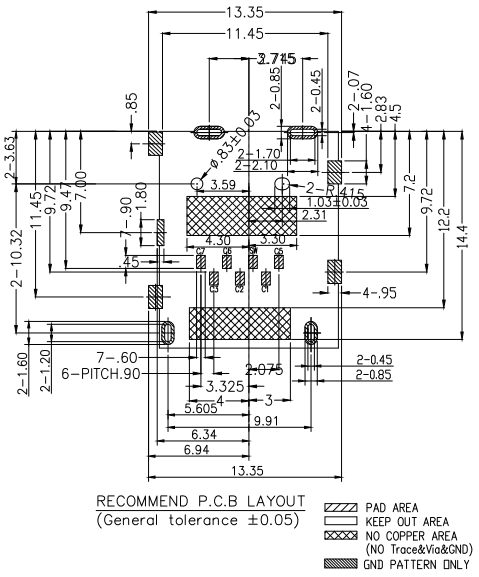

5.Recommending A Metal More Than 0.15mm Thick.
Please Confirm Solderadility,If Use A Metal Mask Less Than 0.15mm Thick.
