| ltems | Standard | |
| Operating temperature range | -10℃ to +60℃ | |
|
Electrical performance |
Rating | 50mA. |
| Insulation resistance | 100MΩ min.100V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 500mΩ max. | |
| Durability | Lifetime | 50,000 Cycles |
|
Mechanical performance |
Operating force |
Push portion:200±50gf
Lever position:80±50gf
|
| Travel | 0.2±0.1mm | |

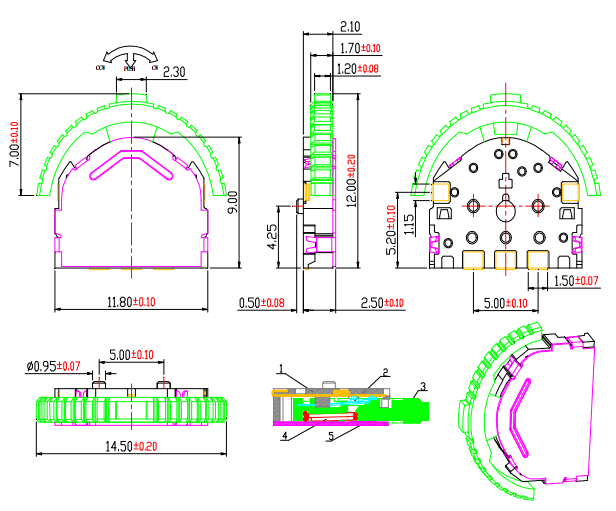

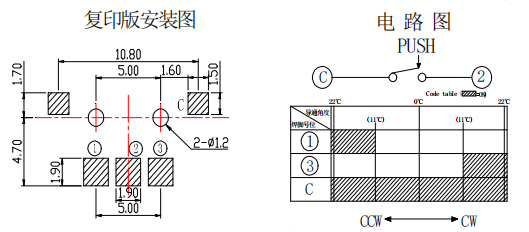

| Proudcts | Dimensions | Circuit Diagram |
| Pad Layout | ||
 |
 |
 |
