| ltems | Standard | |
| Ambient Temper. Used | -25℃ to +70℃ | |
|
Electrical performance |
Rating | 0.1A DC30V |
| Insulation resistance | 100MΩ min.DC500V | |
| Withstand Voltage | AC500V 1min. | |
| Contact resistance | 100mΩ max. | |
|
Mechanical performance |
Operating force | 90gf MAX |
| Durability | Electrical Life | 5,000,000 Cycles |
| Mechanical Life | 5,000,000 Cycles | |

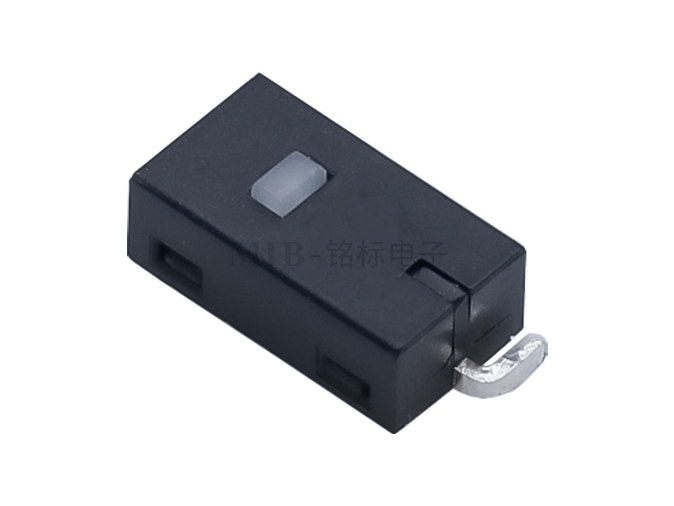

| Proudcts | Dimensions | Circuit Diagram |

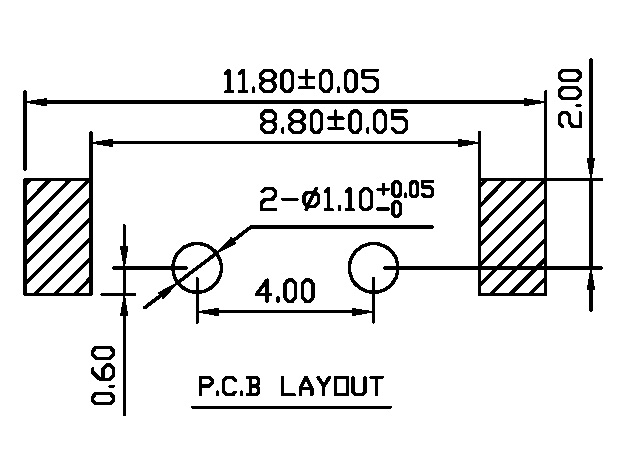

| Pad Layout | ||
 |
 |
 |
