SPECIFICATONS:
1. Plastic material: LCP UL 94V-0 BLACK;
2. The maximum burr edge is 0.03mm and the thickness is 0.05mm;
3. The product must not have obvious shrinkage, burning, whitening, or lack of glue,
Terminal encapsulation and other issues;
4. The parts must comply with RoHS requirements;

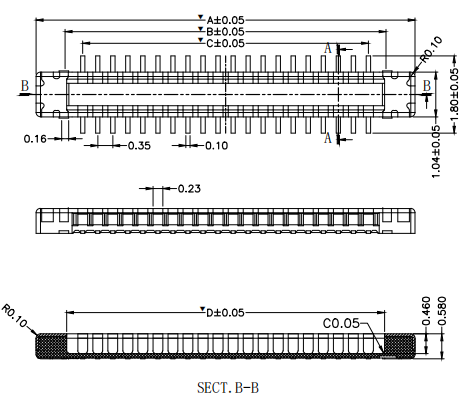

5. The ▼ symbol represents the QIP control size;
6. Mold hole number (A, B, C...);
7. Transfer and receive 10K PCS/tray;
8. The geometric center position of the product cannot have a top out position;
9. The coplanarity of the terminal grounding plate shall be within 0.05mm, and the positive position shall be within 0.02mm;
10. The glue inlet adopts a bottom fine water inlet for glue injection;
